Task #1161
openHES HODO Frame broken - wood branch supports top side
Status:
New
Priority:
Normal
Assignee:
-
Start date:
01/30/2026
Due date:
% Done:
20%
Estimated time:
Description

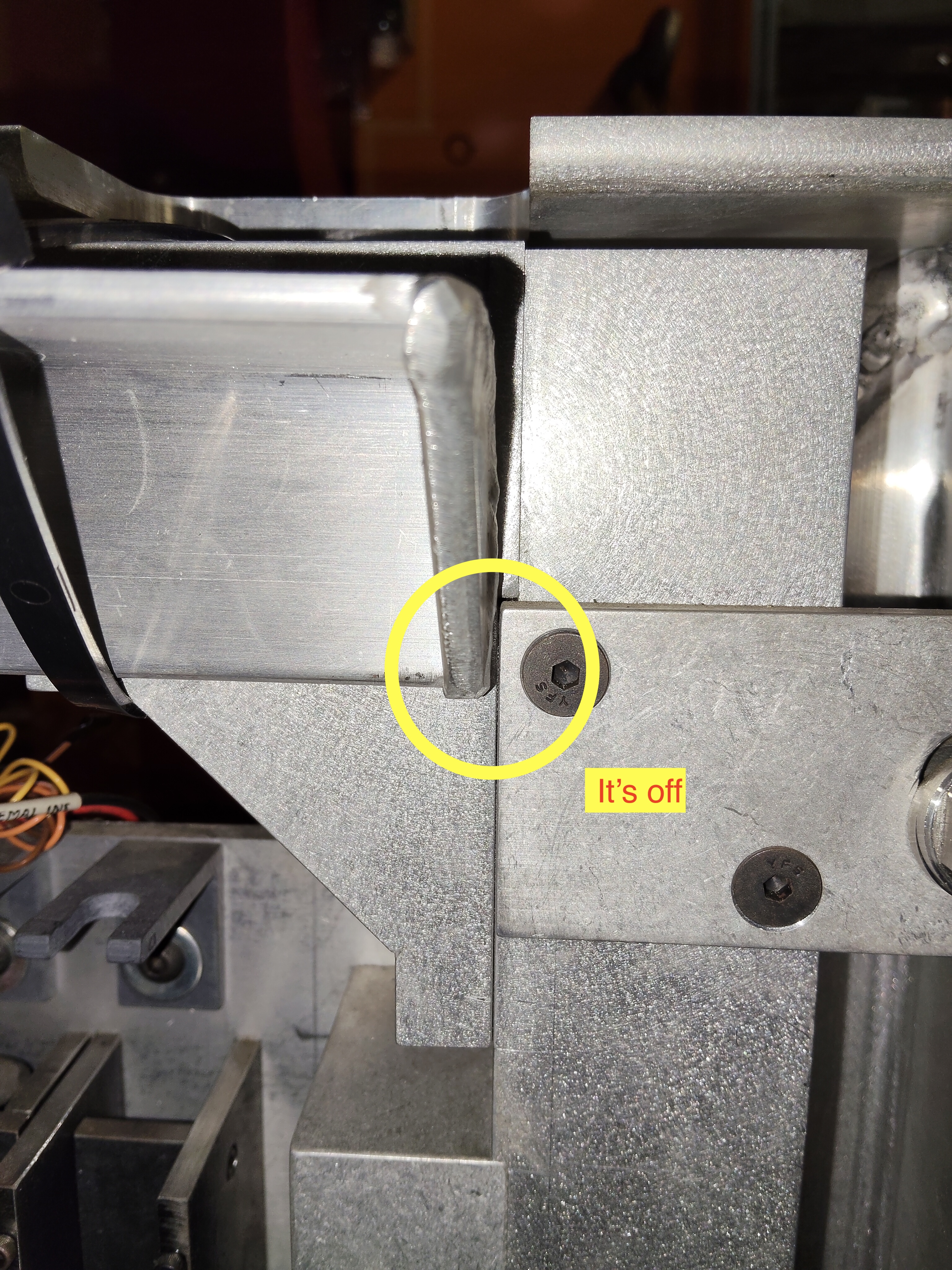

One of HES HODO frame bolts are missing (HES ch30-58 frame's TOP side)

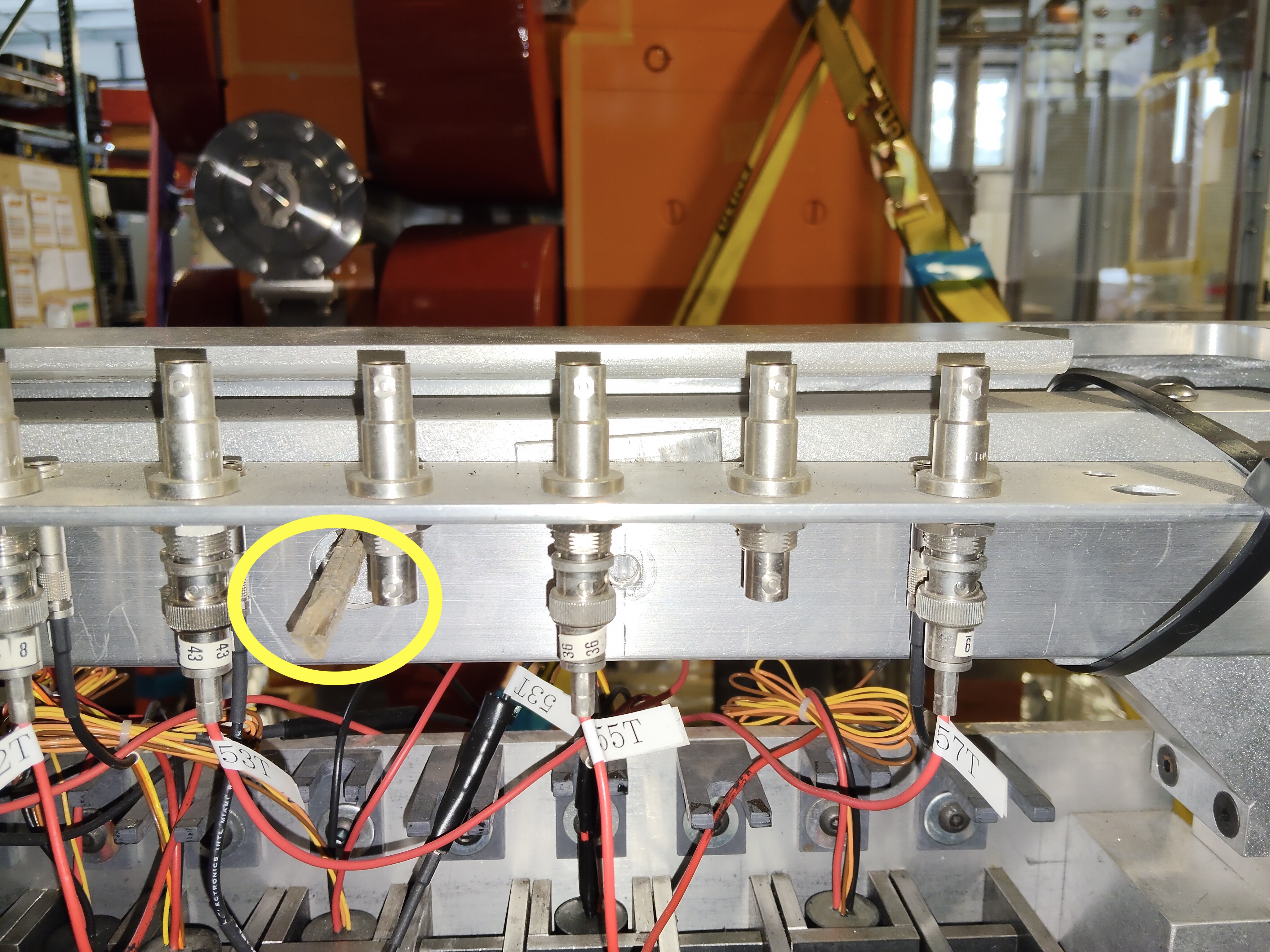

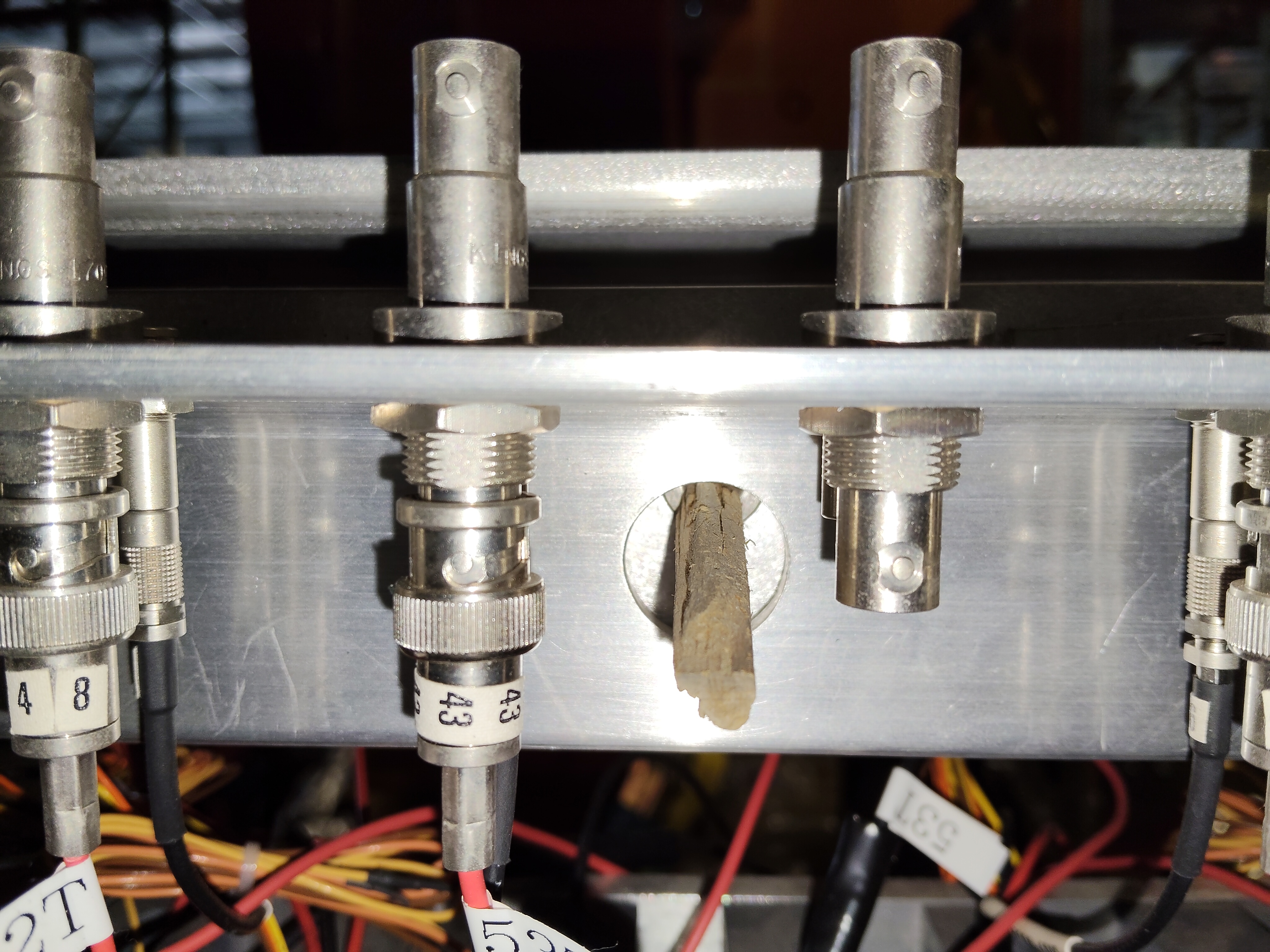

Temporary, wood branch supports instead of this lost bolt.
We don't know why this branch was used.
Files
| Wood.jpg (3.05 MB) Wood.jpg | |||
| Wood2.jpg (3.18 MB) Wood2.jpg | |||
| Wood4.jpg (4.05 MB) Wood4.jpg | |||
| Wood3.jpg (4.74 MB) Wood3.jpg | |||
| IMG20260202101414.jpg (2.65 MB) IMG20260202101414.jpg | |||
| IMG20260202101328.jpg (3.67 MB) IMG20260202101328.jpg | |||
| IMG20260202101321.jpg (3.25 MB) IMG20260202101321.jpg | |||
| IMG20260202101316.jpg (3.96 MB) IMG20260202101316.jpg | |||
| IMG20260202101312.jpg (4.03 MB) IMG20260202101312.jpg | |||
| IMG20260202101306.jpg (3.62 MB) IMG20260202101306.jpg | |||
| IMG20260202101301.jpg (3.94 MB) IMG20260202101301.jpg | |||
| IMG20260202100933.jpg (3.16 MB) IMG20260202100933.jpg |
Updated by Kotaro Nishi 4 days ago
- File IMG20260202101414.jpg IMG20260202101414.jpg added
- File IMG20260202101328.jpg IMG20260202101328.jpg added
- File IMG20260202101321.jpg IMG20260202101321.jpg added
- File IMG20260202101316.jpg IMG20260202101316.jpg added
- File IMG20260202101312.jpg IMG20260202101312.jpg added
- File IMG20260202101306.jpg IMG20260202101306.jpg added
- File IMG20260202101301.jpg IMG20260202101301.jpg added
- File IMG20260202100933.jpg IMG20260202100933.jpg added
- % Done changed from 0 to 20

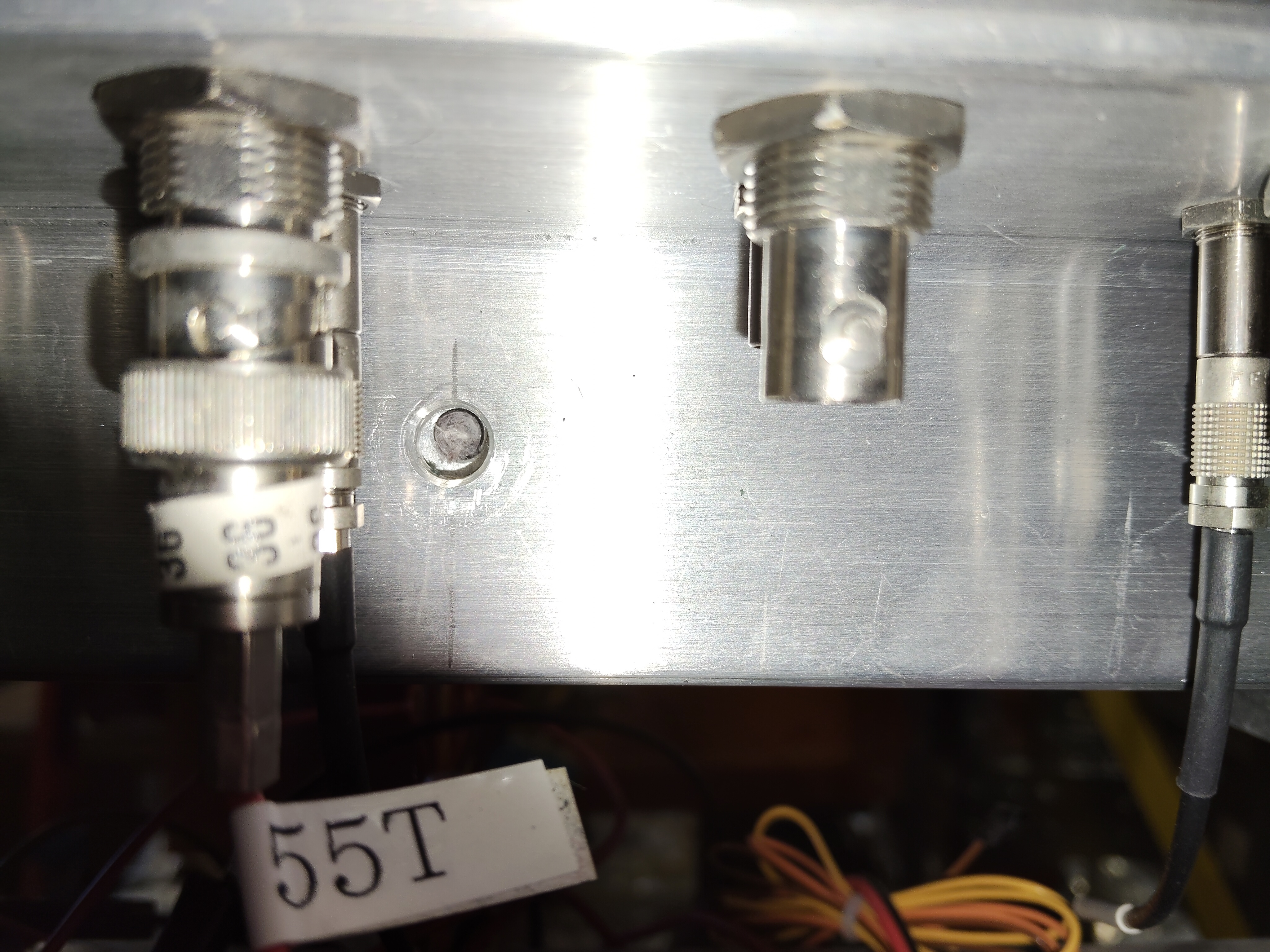

Confirmed a sheared bolt is embedded in the hole.

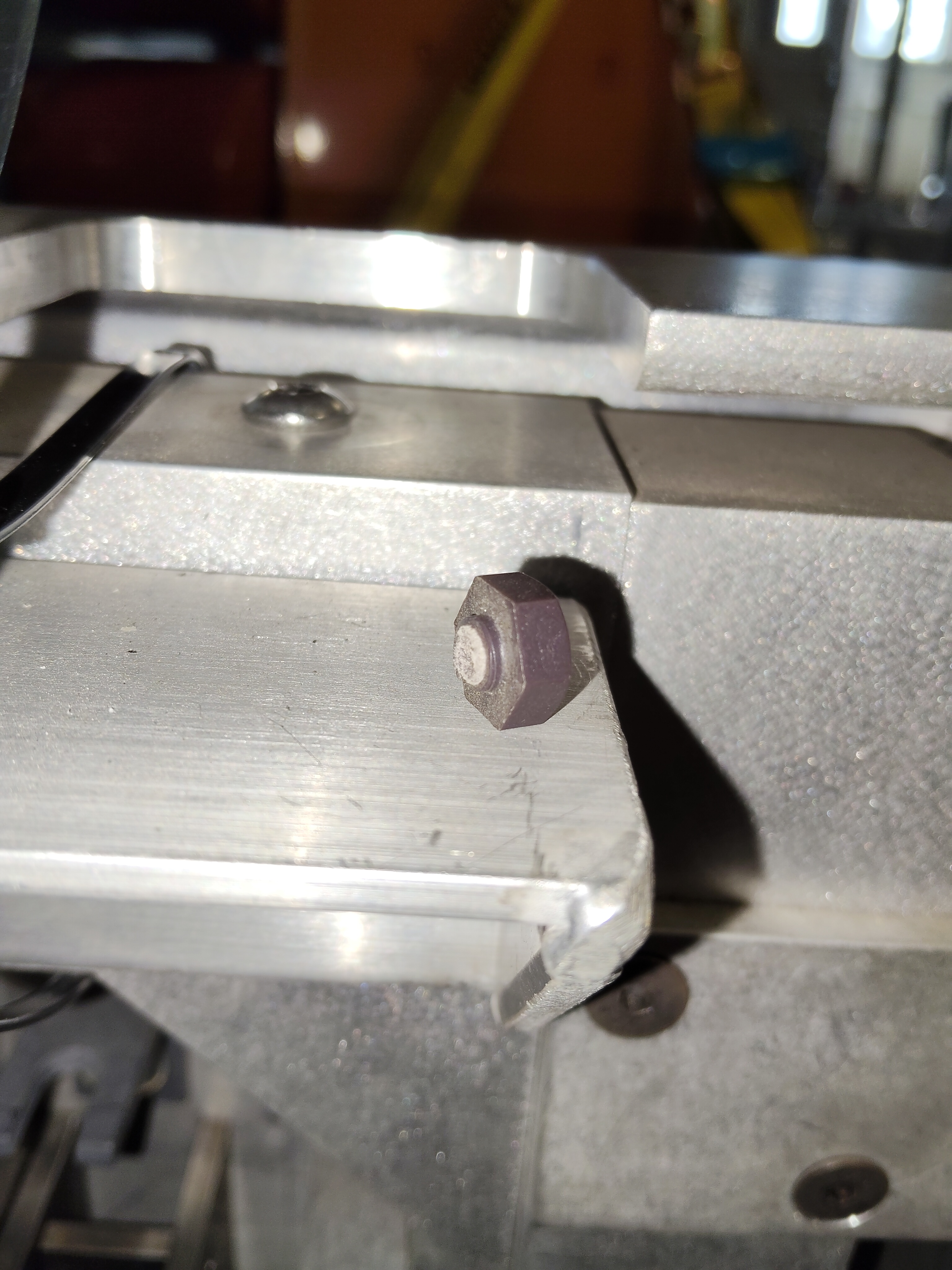

Located the bolt head and confirmed it is made of a lightweight, plastic-like material.

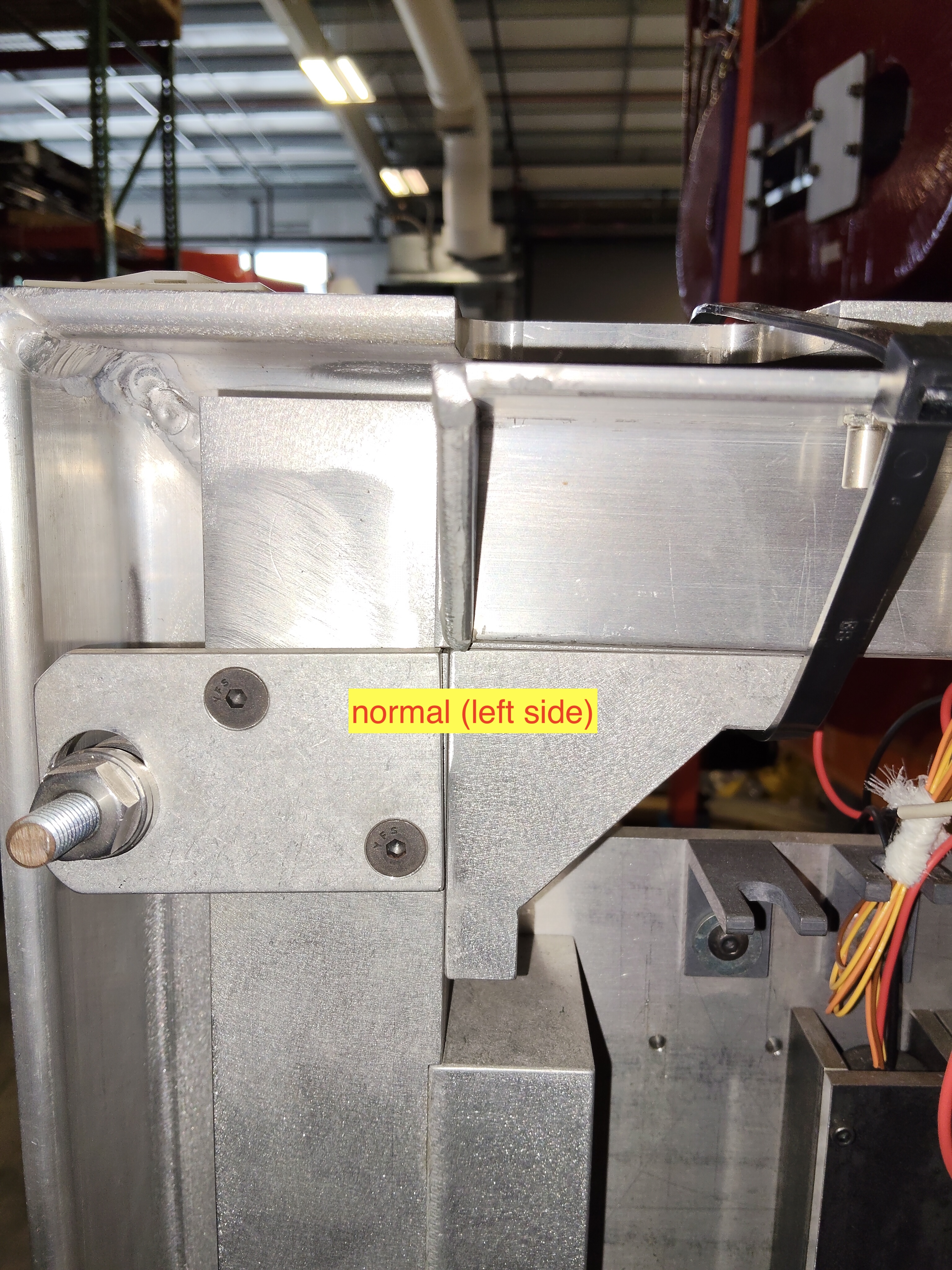

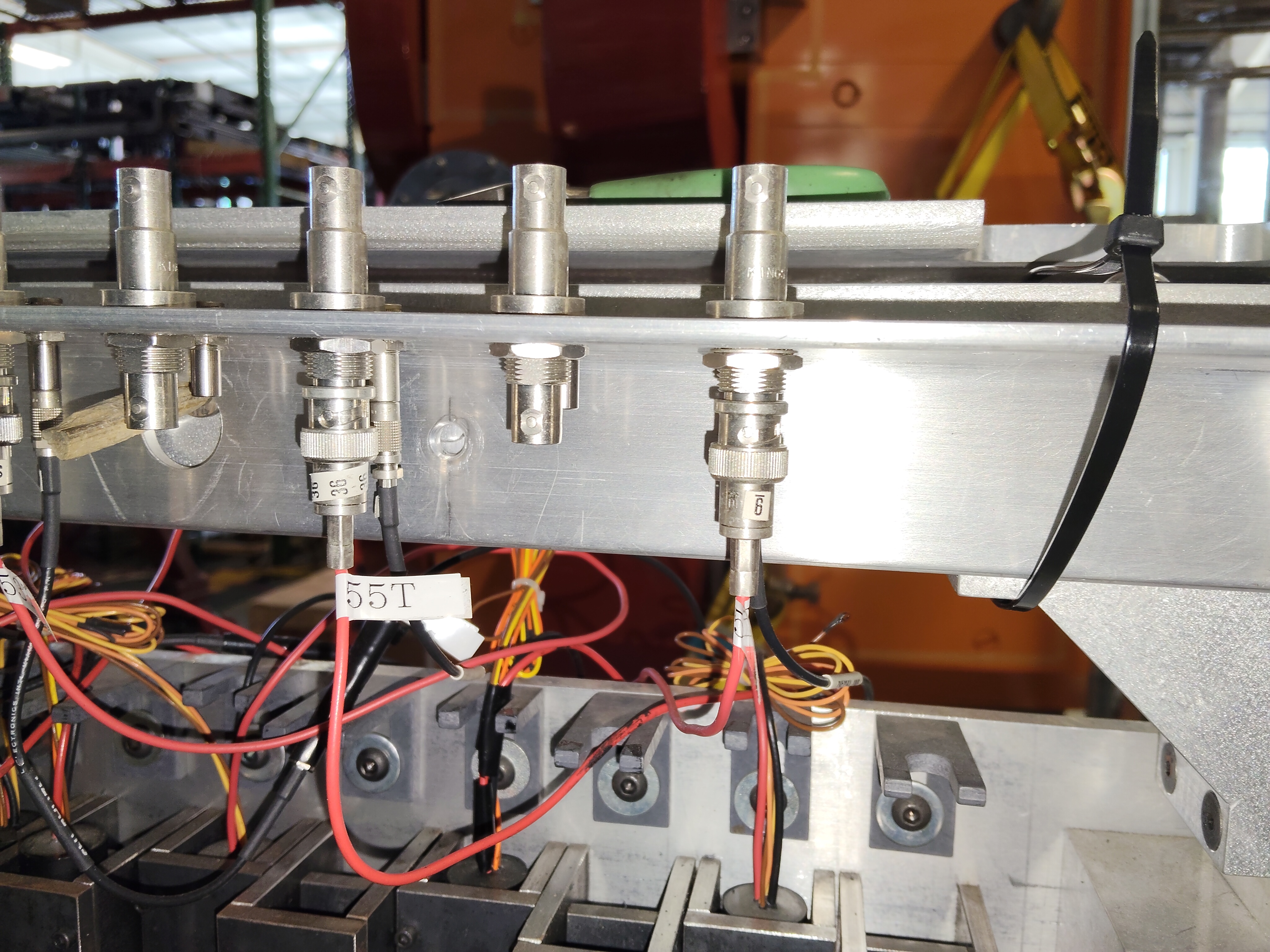

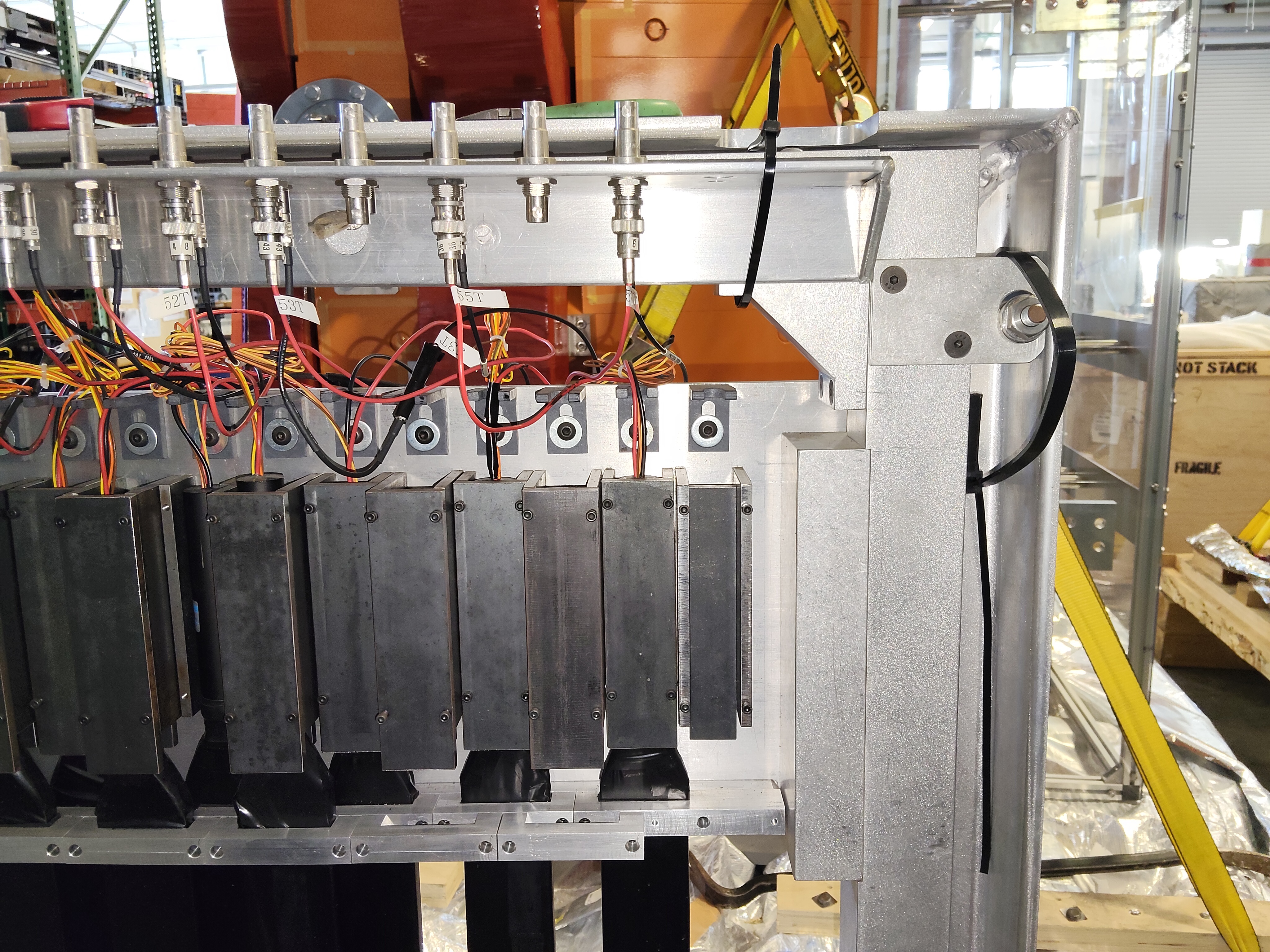

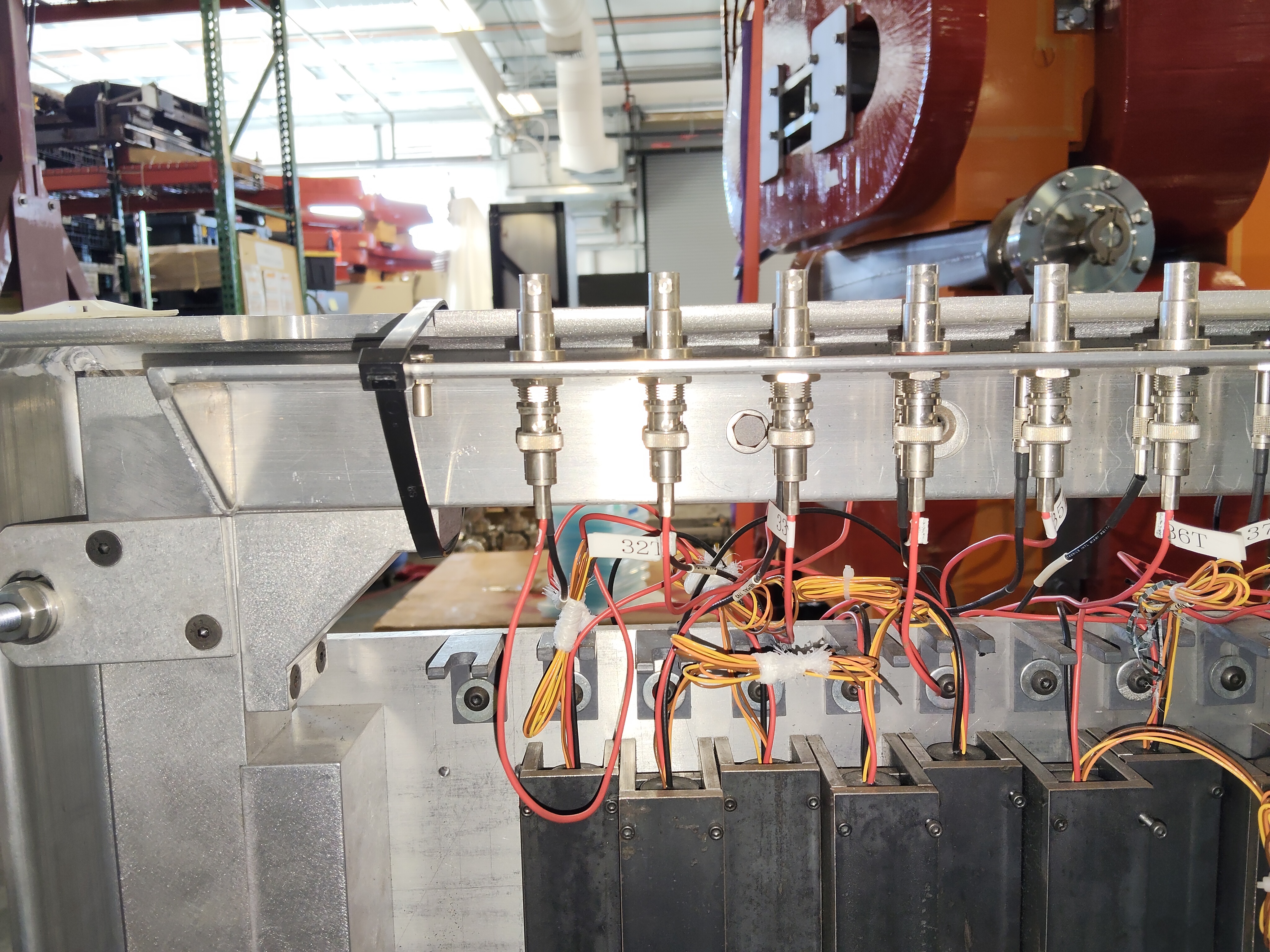

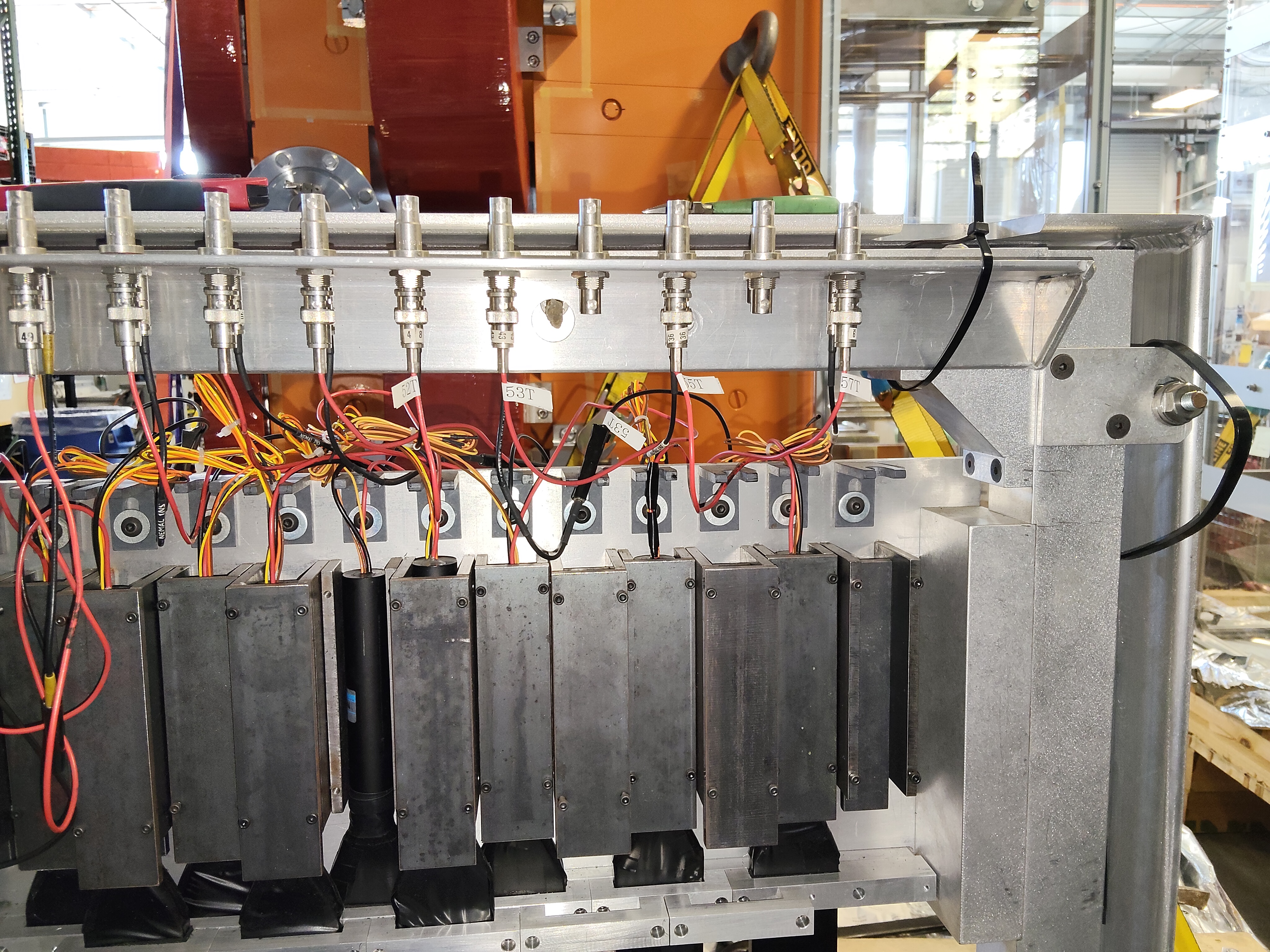

The component is currently secured by a bolt on the left and a cable tie (zip tie) on the right.
Updated by Kotaro Nishi about 22 hours ago
- Priority changed from High to Normal
Bill will solve this problem with engineering group
