Task #1167
openTask #1133: Slow Controls
Task #1136: Low-voltage controls
Task #1145: Display/GUIs
Shower Max screens
Start date:
02/05/2026
Due date:
% Done:
70%
Estimated time:
Responsible:
Description

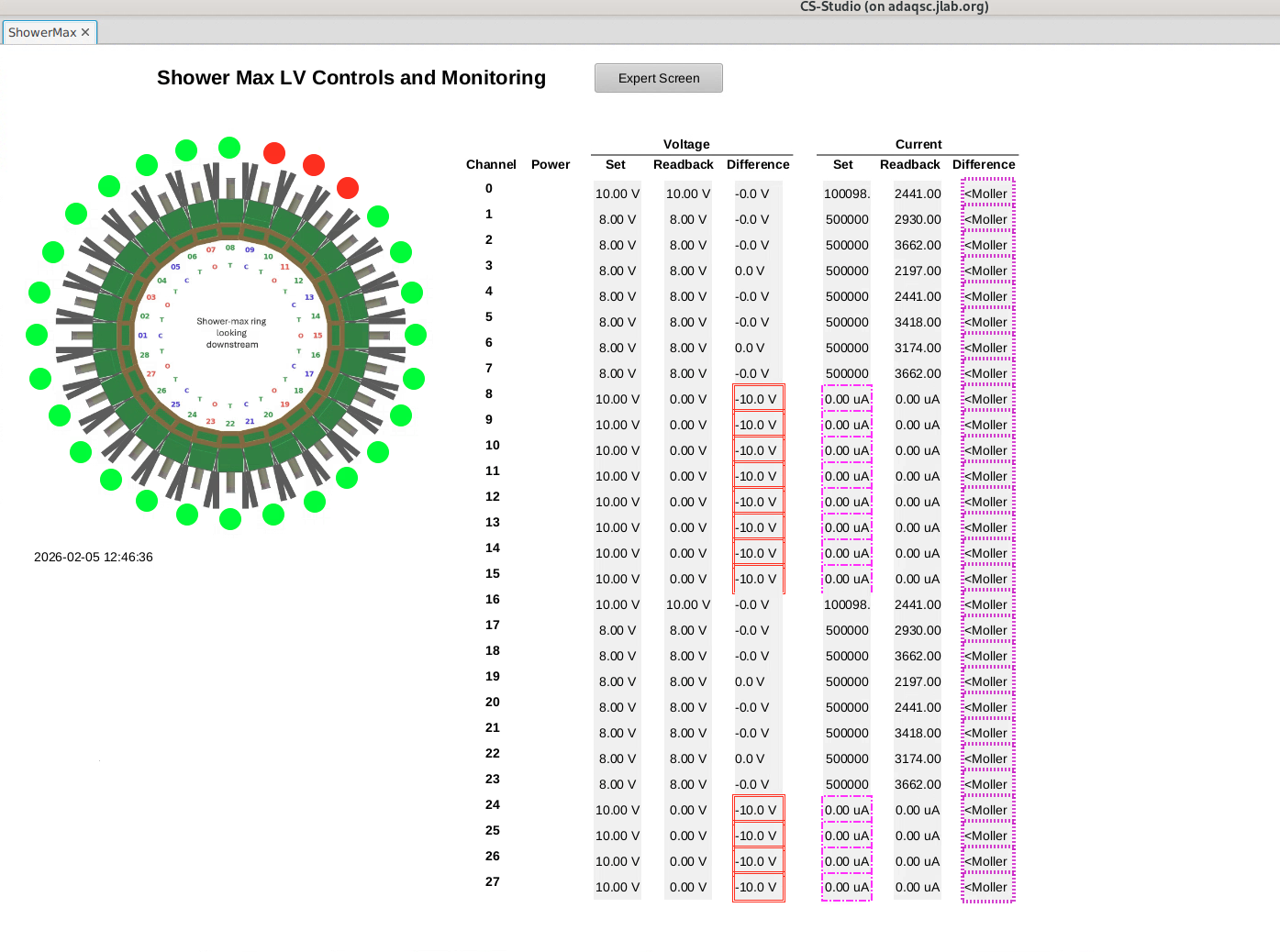

Draft version of Shower max LV control screen.
Shower Max has 28 HV/LV channels. The CAD image shows the module numbers and sectors (O: open, C: closed, T: transition).
The overview screen was produced directly from display builder since there are only 28 channels. For the embedded table, I re-purposed the NPS LV screen. A python script can generate this screen .bob file with a channel map.
Tested with the channels from the test stand in the hall.
Remaining work, notes:- Expert mode: plan to implement an expert mode screen where experts can modify set values. In the current "shift mode" screen, set values are just readback values.
- LV and HV controls need to follow a particular order (LV->HV when turning them on, HV->LV to turn them off). Need to add indicators to LV/HV screens and place locks, confirmation messages.
Files

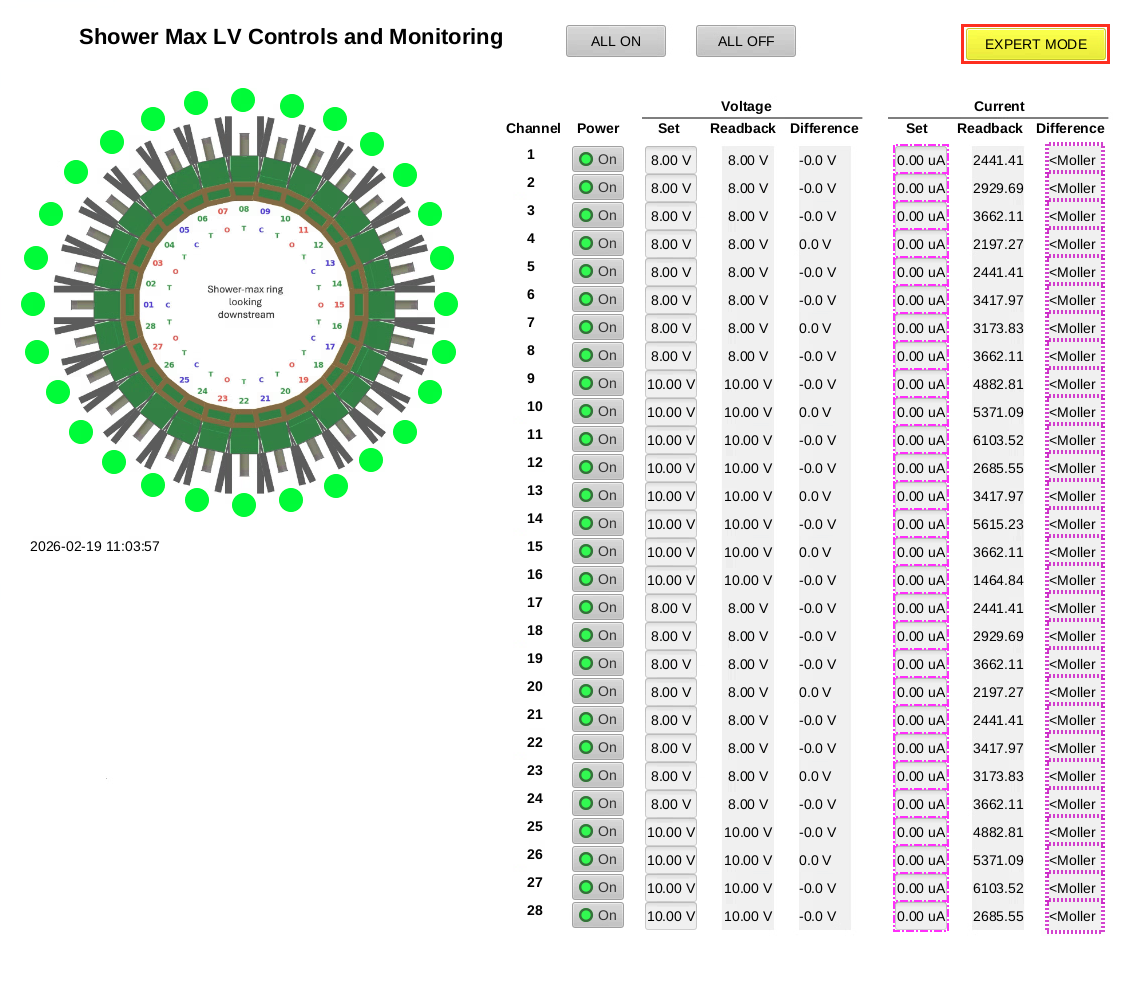

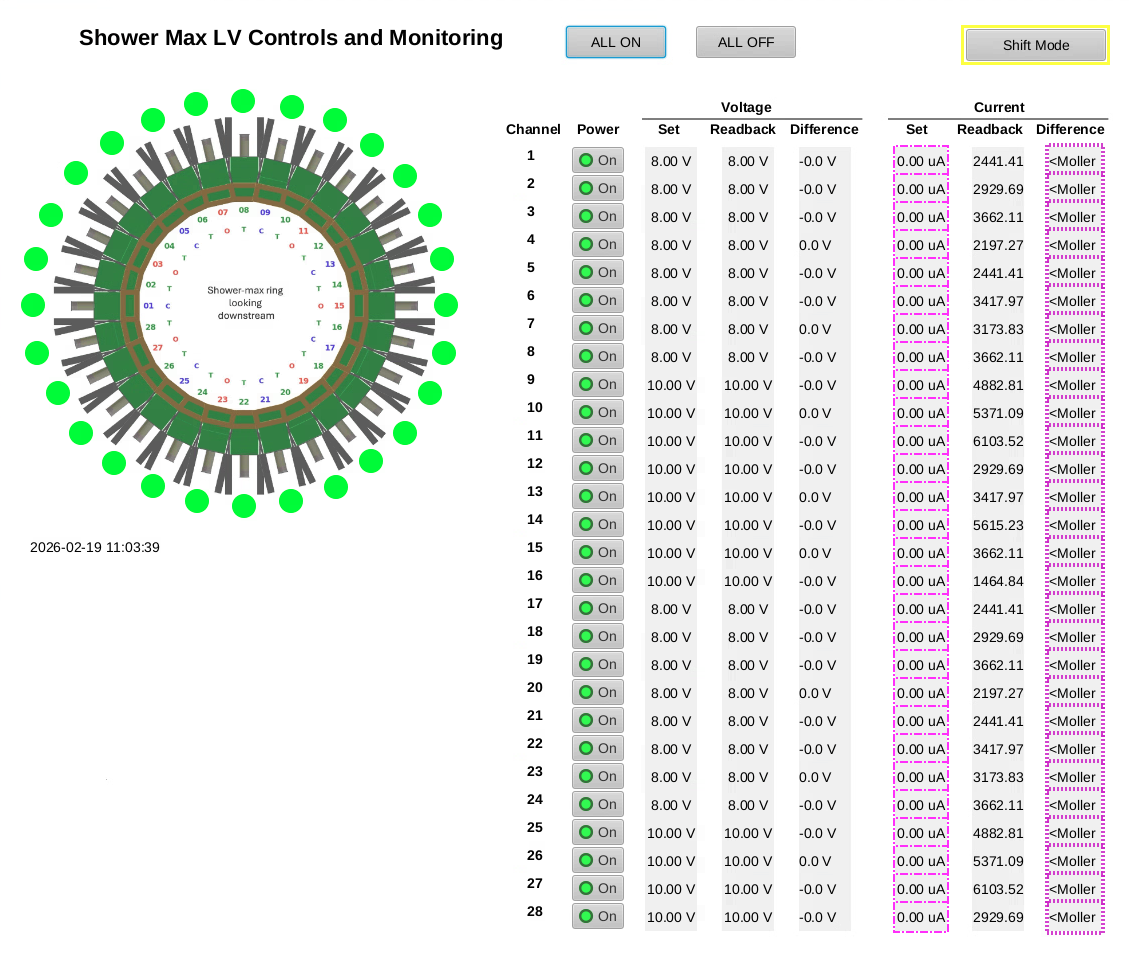

| ShowerMax_Shiftmode.png (357 KB) ShowerMax_Shiftmode.png | Shift mode screen | ||
| ShowerMax_Expertmode.png (369 KB) ShowerMax_Expertmode.png | Expert mode screen |
Updated by Sanghwa Park 16 days ago
- File ShowerMax_Shiftmode.png ShowerMax_Shiftmode.png added
- File ShowerMax_Expertmode.png ShowerMax_Expertmode.png added
- Added power button for each channel.
- Make the detector channel number start from 1 to be consistent with the CAD image.
- Added Expert/Shift modes. Mode change by the button (replacing the display). Expert mode can change set values while Shift mode only shows the values.
- Added all ON/OFF buttons with embedded scritps.
